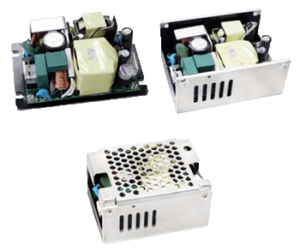

Wall Industries has released the PSAFR130 series of highly efficient power supplies available in open frame, u-chassis, or enclosed packaging.
Wall Industries Inc. has recently released the PSAFR130 series of open frame, u-chassis, and enclosed power supplies. This series offers up to 130 watts of power and single output models ranging from 12-48VDC with an input range of 90-264VAC.
Features of the PSAFR130 series include high efficiency, active PFC, and I/O isolation 4000VAC. It also supports operating altitude up to 5000m, an optional 8CFM fan, and has protection against short circuit, over power, over voltage, and over temperature conditions. Safety approvals for PSAFR130 include UL/IEC/EN 62368-1. For full details see the PSAFR130 series page.
Open Frame
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power | ||||
| 8CFM Fan | Natural Convection | 8CFM Fan | Natural Convection | ||||||
| 115VAC | 230VAC | 115VAC | 230VAC | ||||||
| PSAFR130-12S | 90~264VAC | 12V | 10.833A | 9.166A | 9.917A | 90% | 130W | 110W | 119W |
| PSAFR130-24S | 24V | 5.417A | 4.583A | 4.958A | 90% | 110W | 119W | ||
| PSAFR130-48S | 48V | 2.708A | 2.395A | 2.604A | 91% | 115W | 125W | ||
U-Chassis
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power | ||||||||
| 8CFM Fan | Conduction | Natural Convection | 8CFM Fan | Conduction | Natural Convection | ||||||||
| 100 VAC | 115 VAC | 230 VAC | 100 VAC | 115 VAC | 230 | ||||||||
| PSAFR130-12SU | 90~264VAC | 12V | 10.833A | 10.833A | 10.833A | 9.167A | 9.917A | 90% | 130W | 130W | 110W | 119W | 119W |
| PSAFR130-24SU | 24V | 5.417A | 5.417A | 5.417A | 4.792A | 5A | 90% | 115W | 120W | 120W | |||
| PSAFR130-48SU | 48V | 2.708A | 2.708A | 2.702A | 2.5A | 2.604A | 91% | 120W | 125W | 125W | |||
Enclosed Case
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power | ||||||||
| 8CFM Fan | Conduction | Natural Convection | 8CFM Fan | Conduction | Natural Convection | ||||||||
| 100 VAC | 115 VAC | 230 VAC | 100 VAC | 115 VAC | 230 | ||||||||
| PSAFR130-12SC | 90~264VAC | 12V | 10.833A | 10.833A | 10.833A | 10.833A | 8.75A | 90% | 130W | 130W | 105W | 119W | 119W |
| PSAFR130-24SC | 24V | 5.417A | 5.417A | 5.417A | 5.417A | 4.583A | 90% | 110W | 120W | 120W | |||
| PSAFR130-48SC | 48V | 2.708A | 2.708A | 2.708A | 2.702A | 2.396A | 91% | 115W | 125W | 125W | |||
To get in touch with the Wall team about the new PSAFR130 series, you can contact us here.
