PSASC

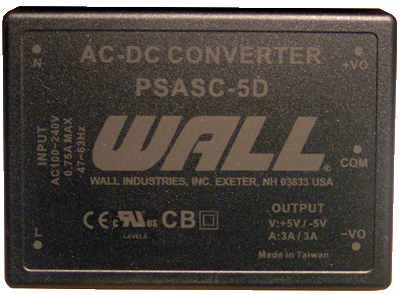

The PSASC series of AC DC power supplies provides 30 watts of output power in a 3.5” x 2.5” x 0.98” encapsulated PCB mountable package. This series consists of single, dual, and triple output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -40°C to +70°C operating temperature range, and over power, over voltage, and short circuit protection. The PSASC series also has two types of screw terminal mechanical options available. All models are RoHS compliant and have UL/cUL, CE, and CB safety approvals.
• RoHS Compliant
• Isolation Class II
• 30 Watts Output Power
• Low Ripple and Noise
• Single, Dual, and Triple Outputs
• UL/cUL, CE, and CB Approvals
• PCB Mountable Switching Power Supply
• Fully Encapsulated Plastic Case
• -40°C to +70°C Operating Temperature Range
• Universal Input Voltage Range: 90-264VAC (120-370VDC)
• Short Circuit, Over Power, and Over Voltage Protection

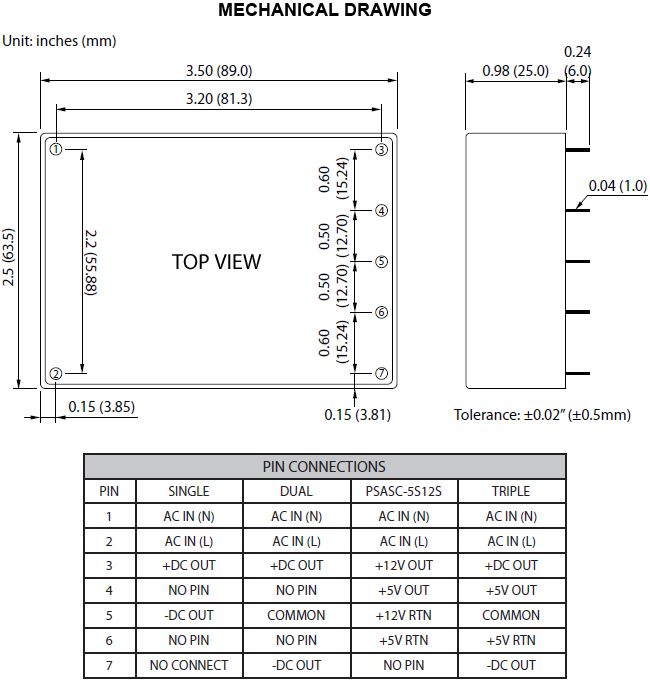

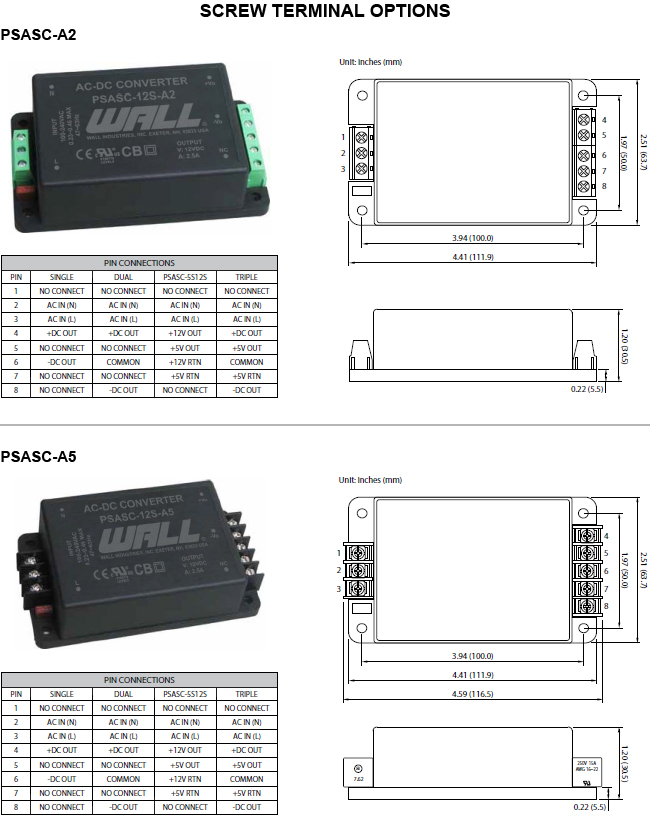

• Screw Terminal Mechanical Options Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

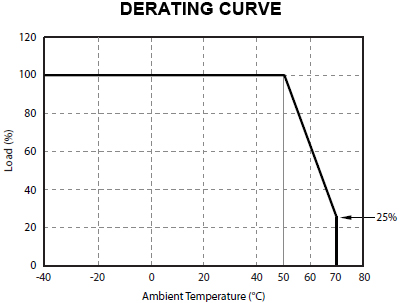

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSASC-3.3S | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 20 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-12D | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: ±1.25A | Output Power (W): 30 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-15D | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: ±1A | Output Power (W): 30 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-5D | Input Voltage: 90~264 | Output Voltage: 5, -5 | Output Current: ±3A | Output Power (W): 30 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-5S12D | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 3A, ±0.63A | Output Power (W): 30 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-5S12S | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 3A, 1.25A | Output Power (W): 30 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSASC-5S15D | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 3A, ±0.5A | Output Power (W): 30 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, -5, 12, -12, 15, -15, 24 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 1.25A, 2A, 2.5A, 3A, 6A, ±0.5A, ±0.63A, ±1A, ±1.25A |
| Output Power (Watts): | 20, 30 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 7.48 oz. |
| Dimensions: | 3.5" x 2.5" x 0.98" (89 x 63.5 x 25 mm) |
| Case Material: | Plastic resin and fiberglass |
| Notes & safety | |
| Notes: | 1. All models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. Load regulation for triple output models: Main output (V1): 20% to 100% with 20% to 100% balanced on auxiliaries. Auxiliary outputs (V2 & V3): 20% to 100% balanced on all outputs. 3. Cross regulation for triple output models: Main output 100% load, auxiliary 100%, other auxiliary 25% to 100%. Auxiliary outputs (V2 & V3): Main output 100% load, auxiliary 100%, other auxiliary 25% to 100% or main output 25%, auxiliary 25%, other auxiliary 25% to 100%. 4. Screw terminal mechanical options available (see page 4). Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE, CB |
| RoHS Compliance: | Yes |
